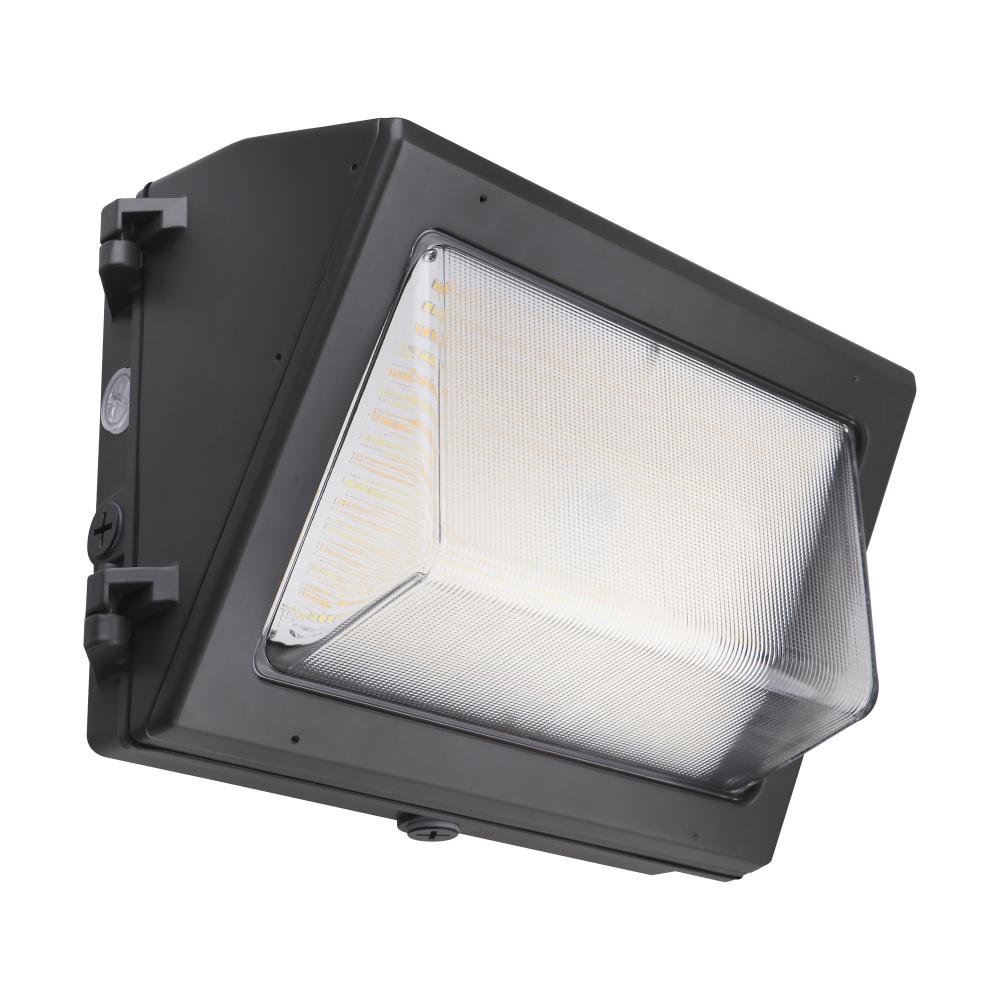

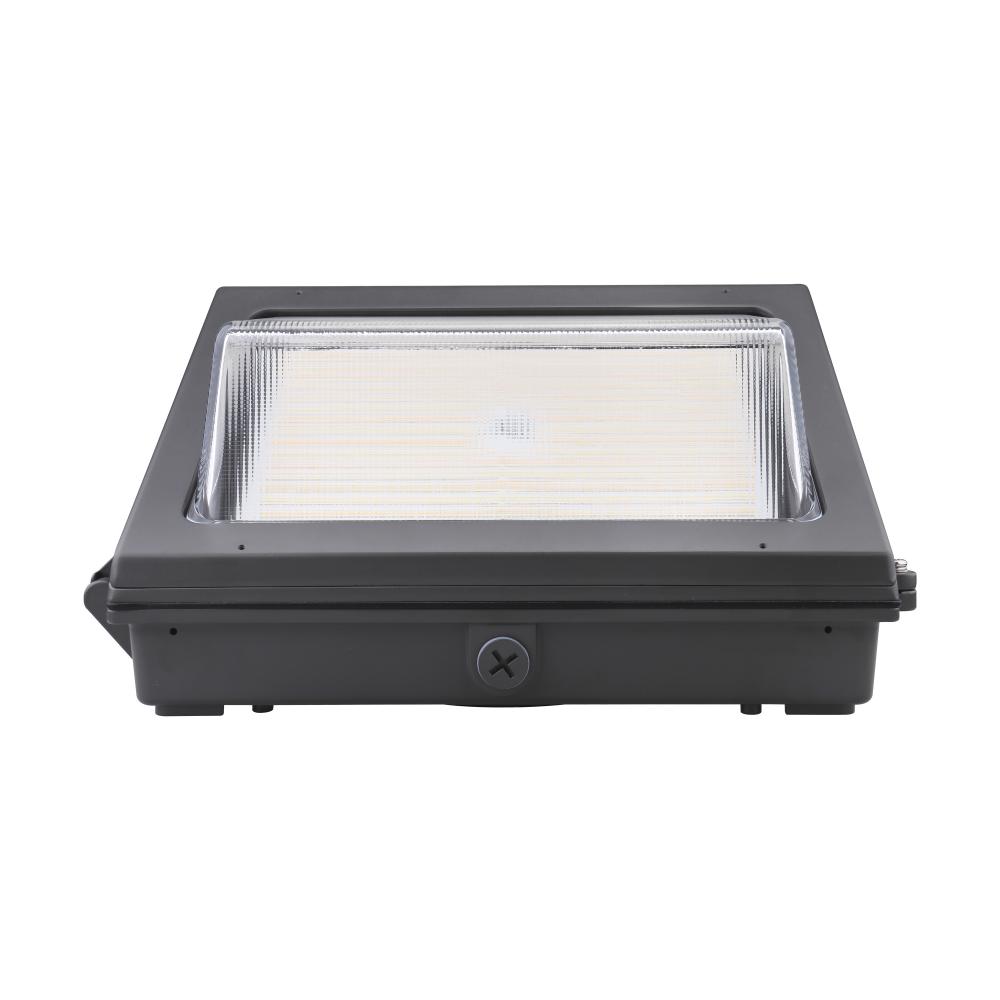

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, (65/756)
CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 80, 100, or 120 Watt; 120-277 Volt
Product Specification
Item #
65/756

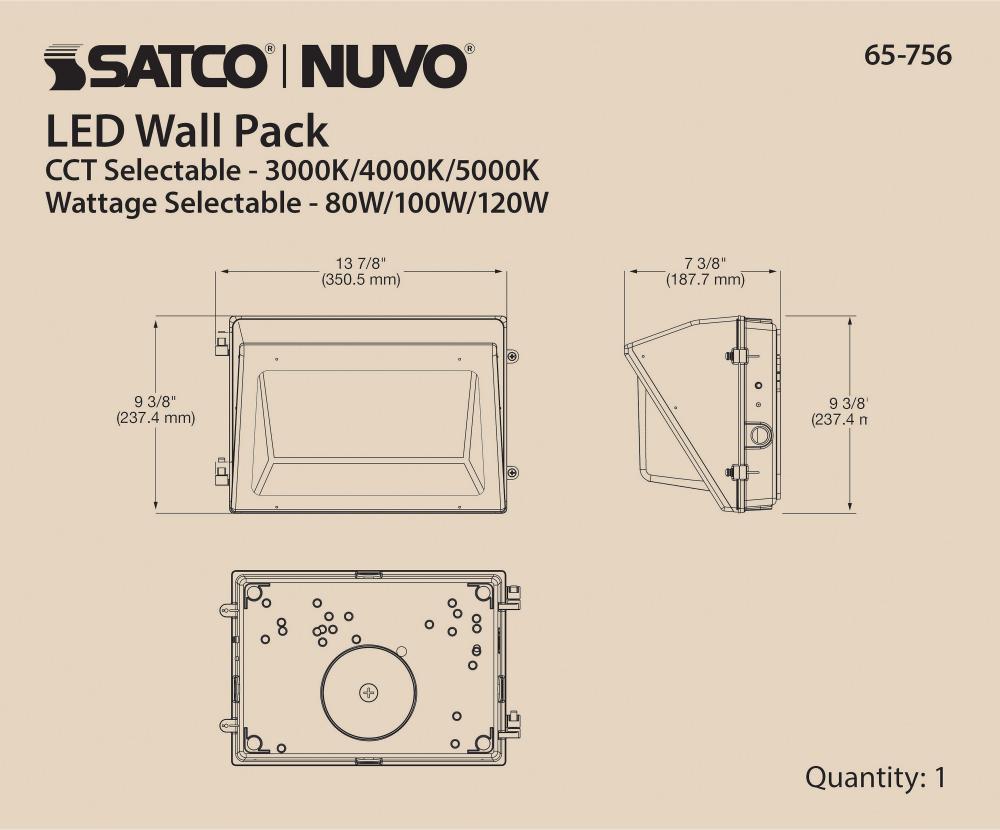

Dimensions
Height: 9.35"
Width: 14.36"
Additional product details
Category
Exterior
, Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
Bronze
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Wall Pack
Sub Category
Standard
Style
Traditional
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
9.84
Each Length
15.63
Each Width
11.69
Lumens
11200L-17280L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.667-0.289/0.833-0.361/1.000-0.433A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
110
B_U_G_Rating
B2-U4-G5
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
1.0405
Each Quantity
1
Efficacy
140.00/142.40/144.00 LPW
FCC Compliant
Yes

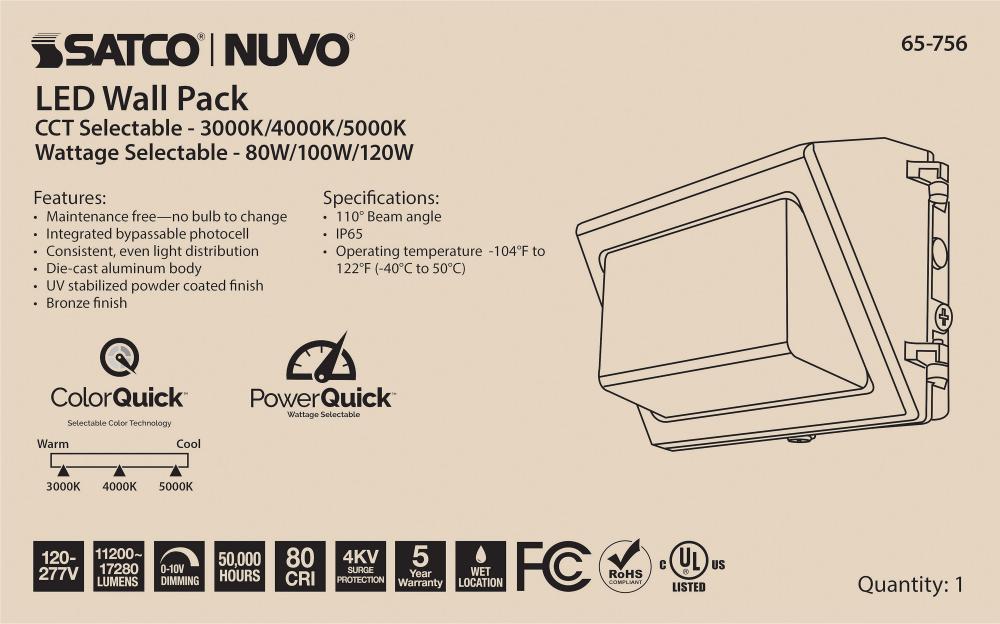

Feature 1
Wattage Selectable 80W/100W/120W
Feature 2
CCT Selectable 3000K/4000K/5000K
Feature 3
Integrated by-passable photocell
Feature 4
4KV Surge Protection
Feature 5
50,000 Hours
Feature 6
DLC Premium
Feature 7
5 Year Warranty
Finish Family
Bronze
HID Equiv
200W-400W
Incandescent Equivalent
600W-1000W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Material
Glass
Long Description
Introducing 65-756, SATCO|NUVO's new CCT and Wattage selectable wall pack with integrated bypassable photocell. This cULus certified wall pack is offered in a traditional style with 80W/100W/120W wattage configurations, CCT selectable temperatures of 3
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Box

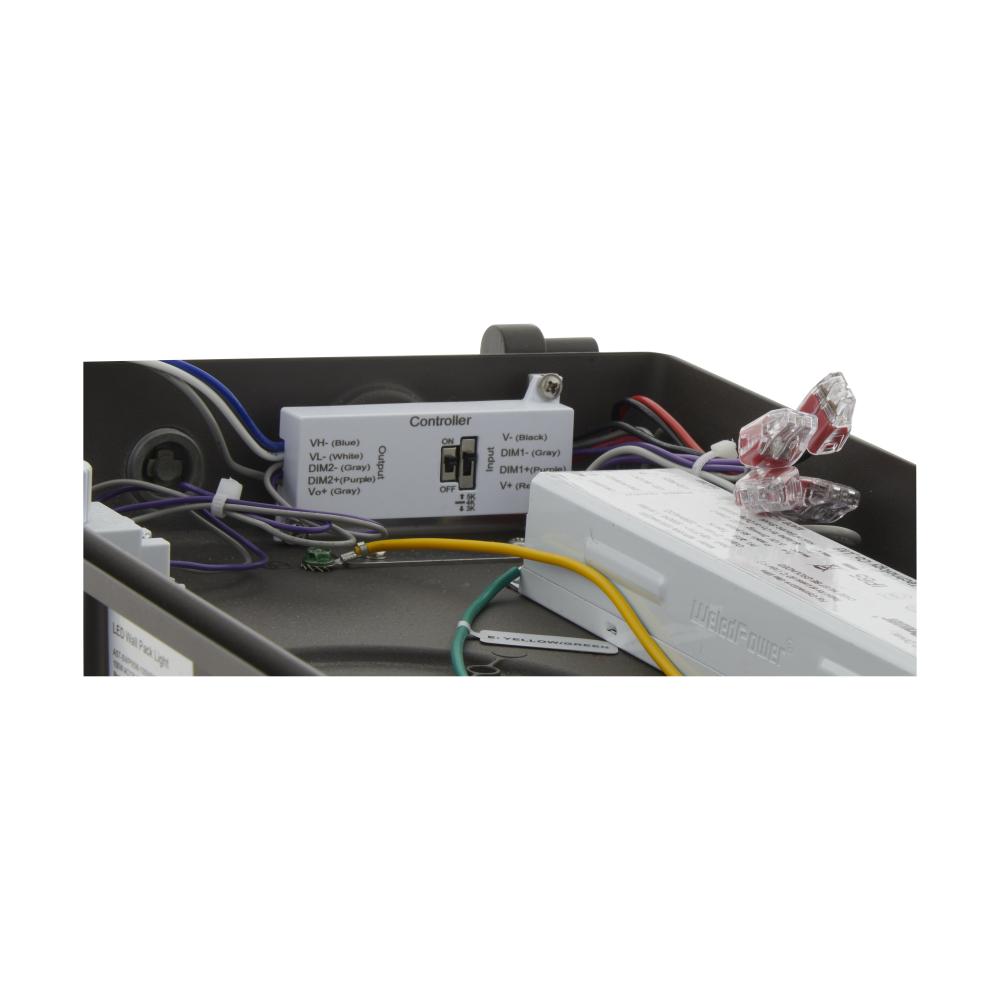

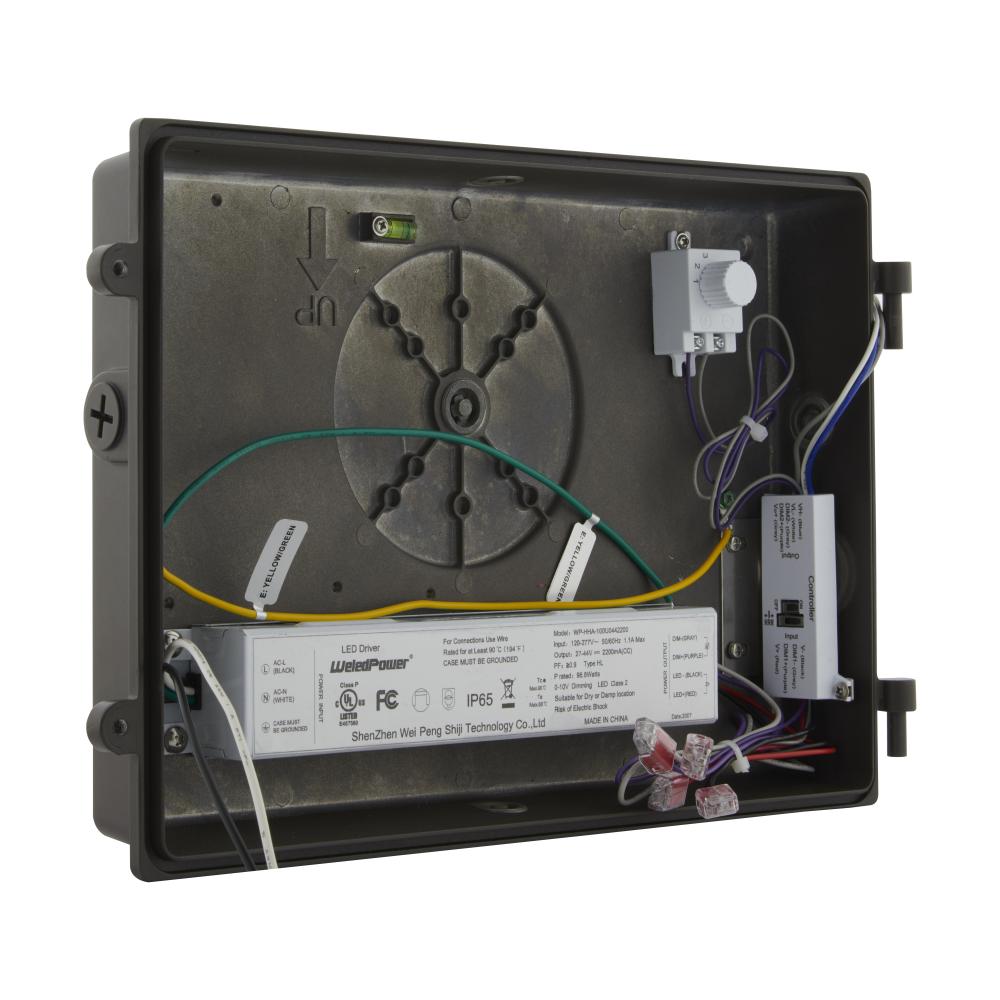

Photocell
Yes - Bypassable
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells. These cULus certified wall packs are offered in a traditional style and semi-cutoff style in two wattage configurations, 29W/40W/60W and 80W/100W
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
LED WALL PACK CCT & WATT ADJ
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
Yes
Weight Lb.
9.5
Finish
