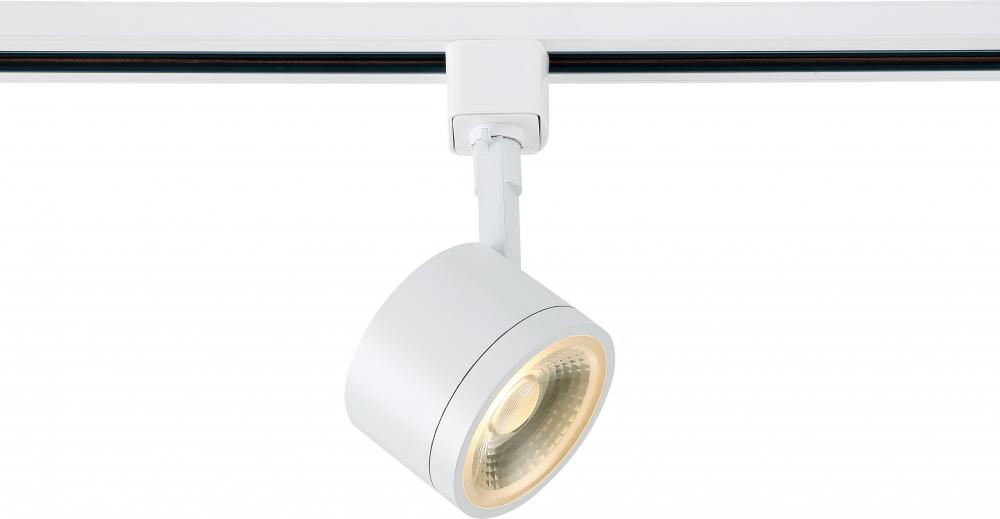

LED 12W Track Head - Round - Matte White Finish - 36 Degree Beam
Image may not reflect selected features
LED 12W Track Head - Round - Matte White Finish - 36 Degree Beam (TH403)
1 Light - LED - 12W Track Head - Round - Matte White - 36 Deg. Beam
Product Specification
Item #
TH403
Dimensions
Height: 3.25"
Width: 3.25"
Additional product details
Category
Track Ltg.
Subcategory
Track Heads
Finish
White
Style
Contemporary , Traditional
Option
LED , Prop 65
Lumens
801-1100
Kelvin
2501-3000
Category
Track Lighting
Sub Category
Track Head
Style
Contemporary
Avg Rated Hours
30000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Yes-Dimmable
Each Height
7.15
Each Length
3.38
Each Width
3.38
Length
2.25
Lumens
1020L
Tariff Code
9405.11.6020
Warranty
3 Year Limited - Fixtures
Amps
0.100A
ANSI Base
Integrated
Beam Angle
36
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 20 percent
Dimmable Function
120V only
Dimming Type
Reverse Phase or Phase Selectable
Each Cube
0.0473
Each Quantity
1
Efficacy
85.00 LPW
FCC Compliant
Yes
Feature 1
Integrated LED featuring 12 watts with 1020 lumens 3000K in soft white and 90 CRI
Feature 2
Dimensions: 3.25 in H x 3.25 in W x 2.25 in L x 6.25 Ext
Feature 3
Contemporary design with modern elements
Feature 4
Steel Construction
Feature 5
Matte White
Feature 6
Dry Location Rated with a beam spread of 36
Feature 7
1 Year Warranty
Feature 8
Visit Satco.com for accessories to create the perfect track system solution
Feature 9
Instructions and mounting hardware included for easy installation
Finish Family
White
Fixture shape
Round
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
Satco's TH403 12-watt round track head is a sleek lighting solution for residential and commercial applications. This matte white fixture is dimmable, durable, and has a 36 degree beam spread. Versatile and contemporary, this track head delivers 30,000
Material
Die-Cast Aluminum
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
60
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Nuvo's track lighting offers a wide range of designs and finishes. Looking for a cinch-waisted track head, we got it. A round or cylinder track is more your style, say no more. Our track heads offer long-lasting integrated LED, providing excellent illu
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
12W LED TRACK HEAD ROUND
Temperature (CCT)
3000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Track Head Style
H-Style
Wattage Selectable
No
Weight Lb.
0.66
